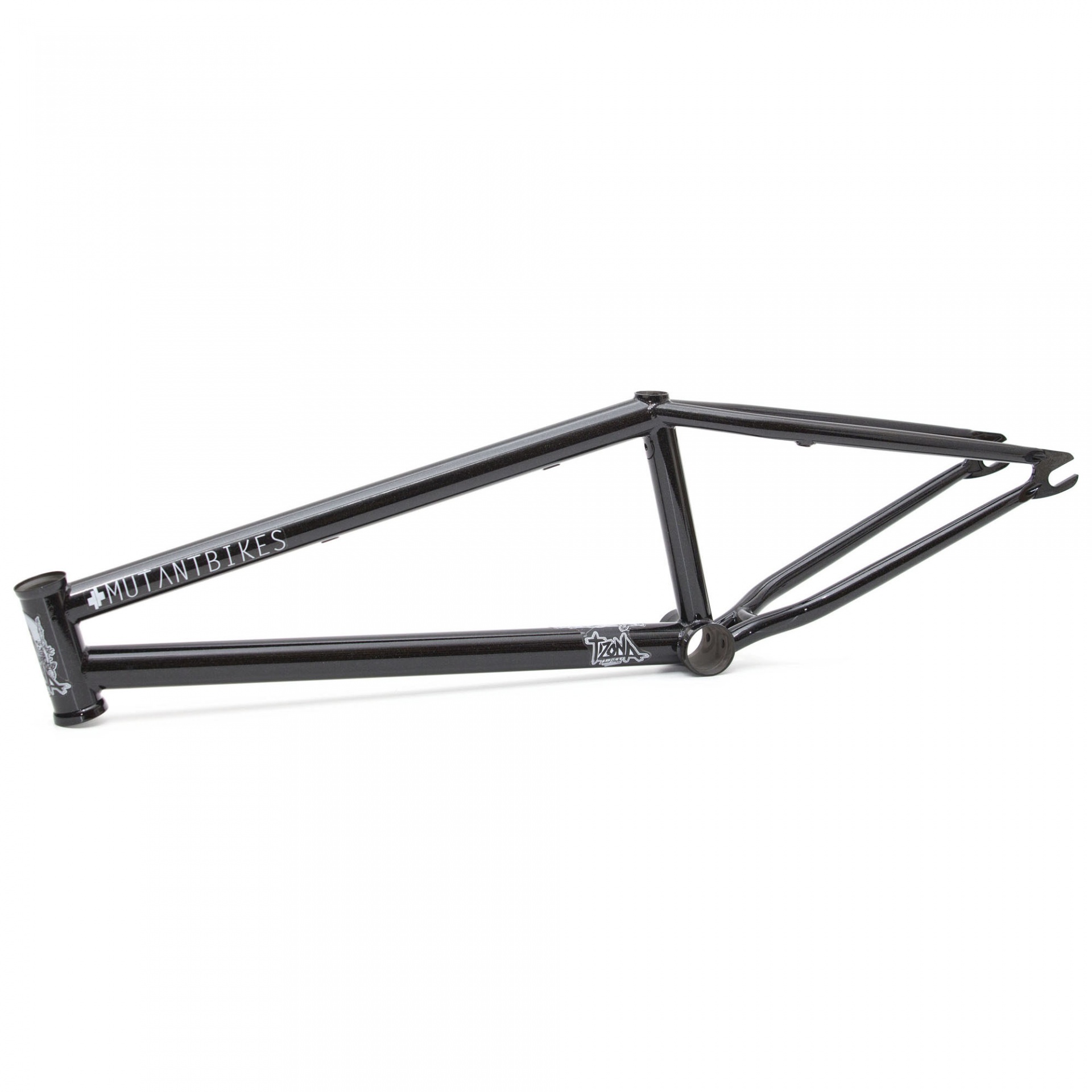

TIZONA FRAME V2

DANIEL PEÑAFIEL SAID THAT WANT TO KEEP HIS FRAME CLEAN AND STRONG WITH SOME NICE DETAILS AND NEW GEOMETRY. HERE IS THE TIZONA V2 FRAME HAS HAD ALMOST A FULL MAKEOVER. WITH A SHORTER BACK END OF 13,20” FOR DANIEL’S TYPE OF RIDE, AS HE LOVE TO RIDE PARK AND DIRT BUT HE NEVER REJECT A STREET SESSIONS.

TIZONA V2 FRAME NOW COMES WITH NEW SEAT STAY BRIDGE WITH MUTANT LOGO STAMPED AND CHAIN STAY BRIDGE IS A TUBE INSTEAD A PLATE, MID BB, NEW BRAKE MOUNTS TYPE, ALL THE OTHER SPECS ARE PERFECT AND NO NEED CHANGES.

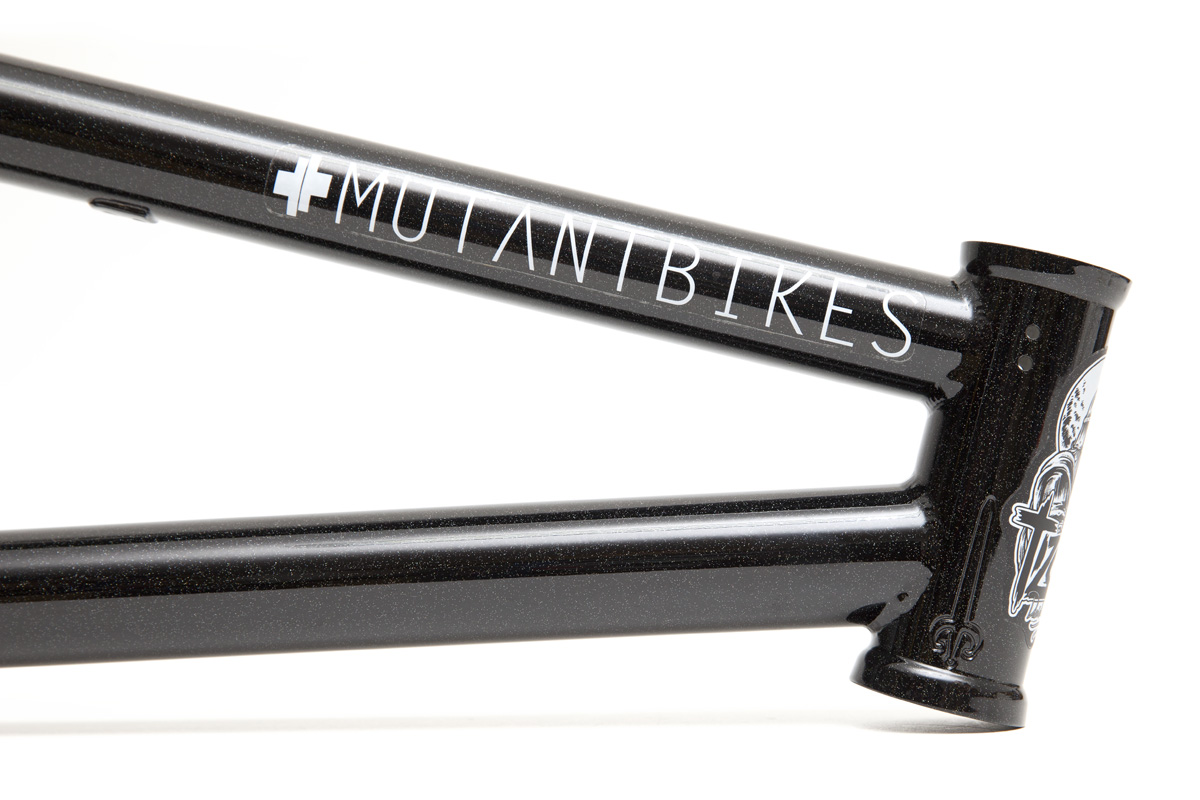

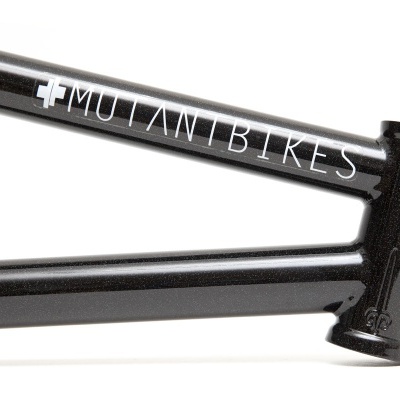

5MM THICK INVEST CAST DROPOUTS, TOP AND DOWN TUBE WITH INTEGRATED GUSEST, SMILE SEAT CLAMP SYSTEM (WITH FREE SSC PIVOTAL POST INCLUDED)

MATERIAL
Made with Sanko tubing double butted. Top and down tube with internal gusset.

TOP TUBE LENGTHS
20.55″, 20.81″ and 21.00″

REAR END
13.20″ till 13,80″

HEAD TUBE ANGLE
75º

SEAT TUBE ANGLE
72º

BB HEIGHT
298,70mm / 11.76”

STANDOVER
220,72mm / 8.69”

SEATCLAMP
Integrated SSC System (comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
Mid BB external machined, heat treated

DROPOUTS
Integrated heat treated, 6mm thick

REMOVABLE
“NEW” Seat stay brake mounts, cable guides and gyro tabs

HEADSET
Integrated heat treated, external machined with Tizona logo CNC, (do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES
Chain Stay and Seat Stay tapered tubes. Seat/Chain Stay bridge heat treated, 5mm thick

COLORS
Gloss black with oil slick glitters, Gloss translucent clear and Gloss Yellow with gold glitters

WEIGHT
2,29Kg / 5.04 lbs.
