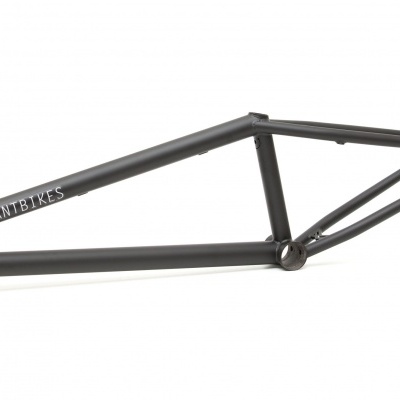

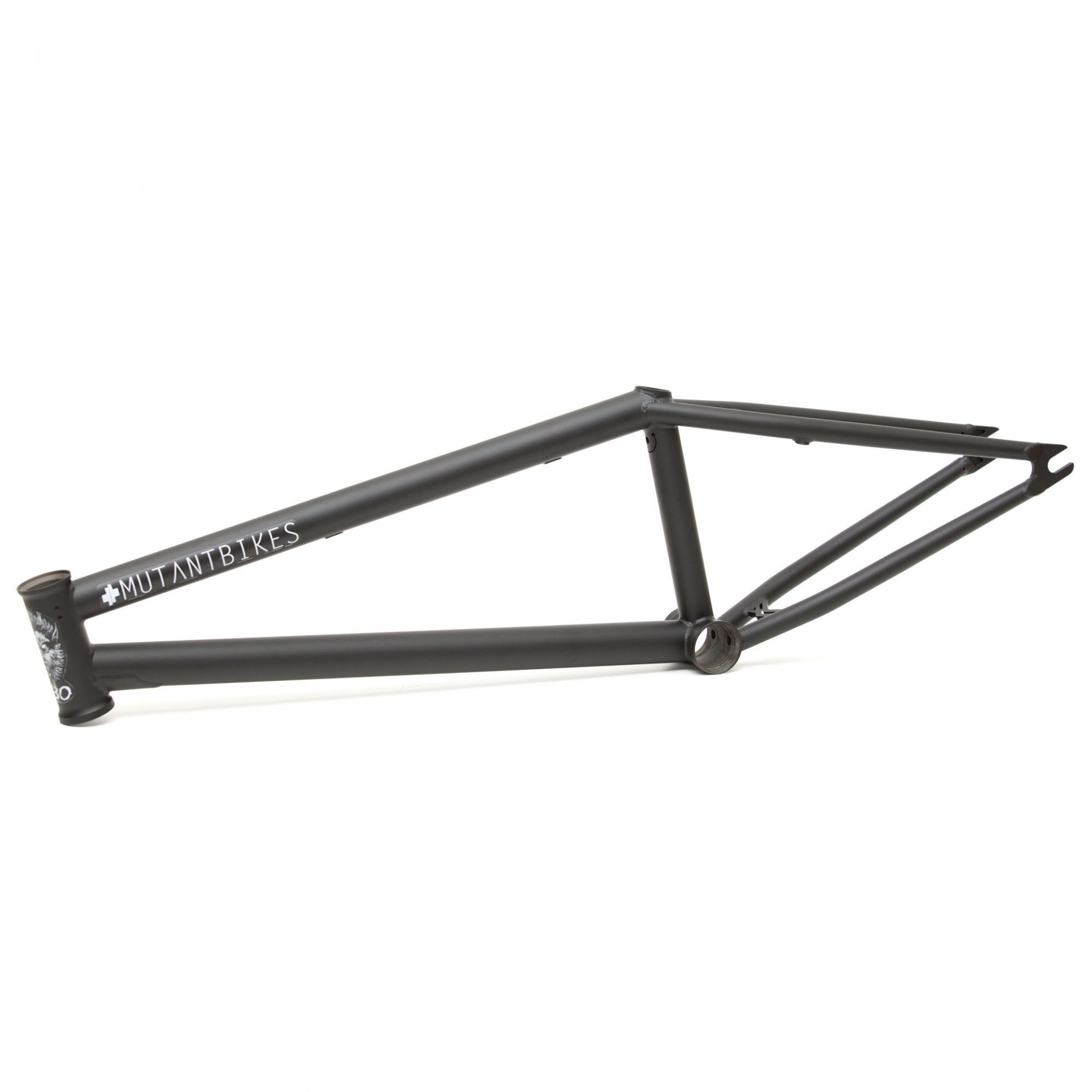

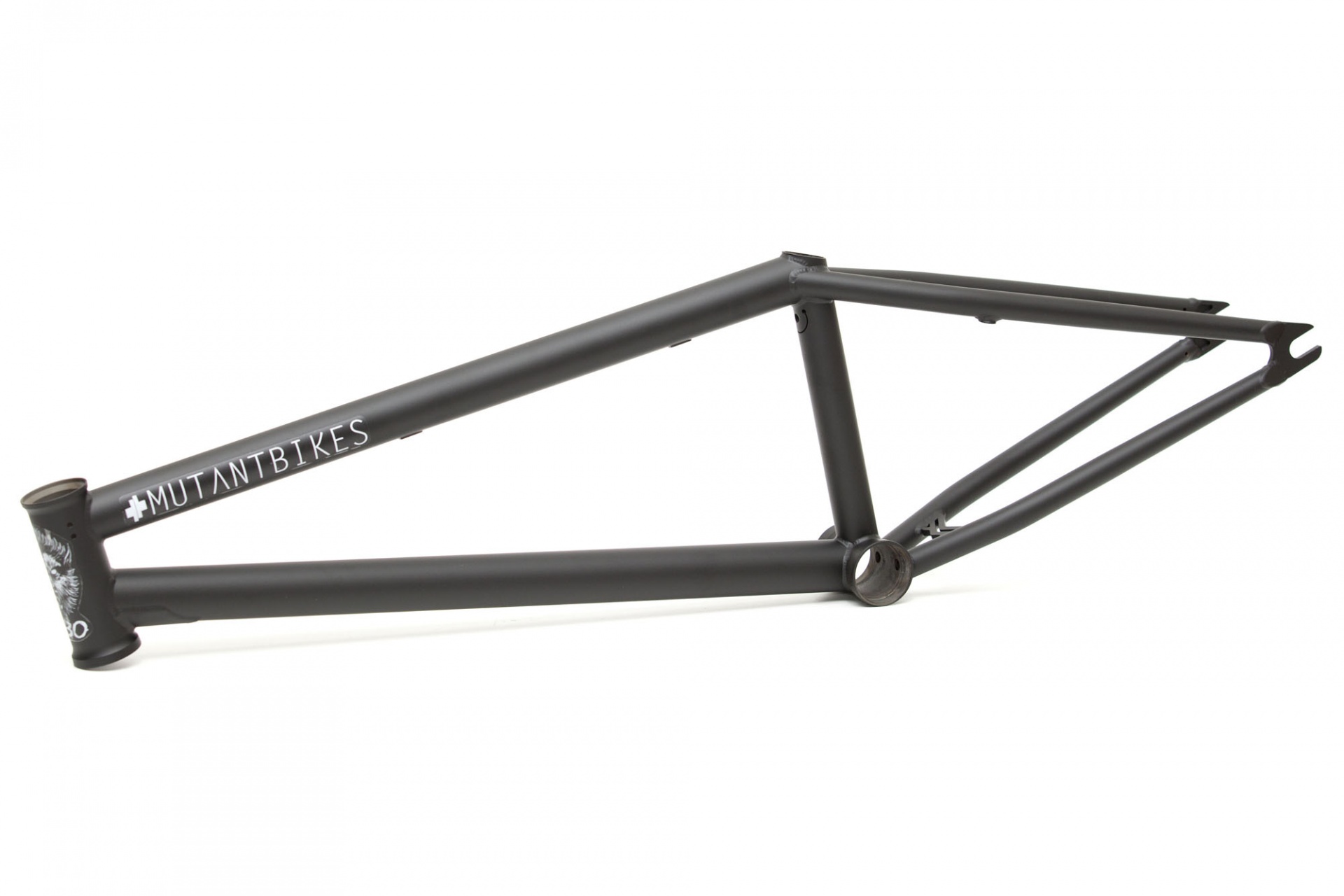

LOBO FRAME V5

THIS IS THE 5TH VERSION OF LOBO AND THE MAIN DIFFERENCES TO THE PREVIOUS ONES ARE: NEW BRAKE MOUNTS TYPE (BETTER AND SIMPLE) AND MID BB, ALL THE OTHER SPECS LIKE (TOP TUBE HAS AN INTERNAL GUSSET, REAR TRIANGLE TUBES ARE TAPERED, STRONGER BRIDGES, ETC) KEEP SAME AS BEFORE, BECAUSE WE DIDN’T HAVE ANY ISSUES.
LOBO WAS OUR 1ST BMX FRAME, BUT HAS BEING UPDATED OVER YEARS TO KEEP IT STRONG FOR YOUR RIDE. GEOMETRY IS MAINLY DESIGNED FOR PARK RIDERS THAT WOULD LIKE TO HAVE SOME STREET SESSIONS.
SSC PIVOTAL SEAT POST INCLUDED.

MATERIAL
Made with Sanko tubing double butted. Top tube with double internal gusset.

TOP TUBE LENGTHS
20.50″, 20.83″, 21″ and 21.26″

REAR END
13.35″ till 13.75″

HEAD TUBE ANGLE
75º

SEAT TUBE ANGLE
71º

BB HEIGHT
288,75mm / 11.37”

STANDOVER
224,79mm / 8.85”

SEATCLAMP
Integrated SSC System (comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
V5 w/ MID BB external machined, heat treated (old version use SpanishBB)

DROPOUTS
Small and with 5mm thick, heat treated, internal machined

REMOVABLE
“NEW” Seat stay brake mounts, cable guides and gyro tabs

HEADSET
Integrated heat treated, external machined with Mutantbikes logo CNC machined (do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES

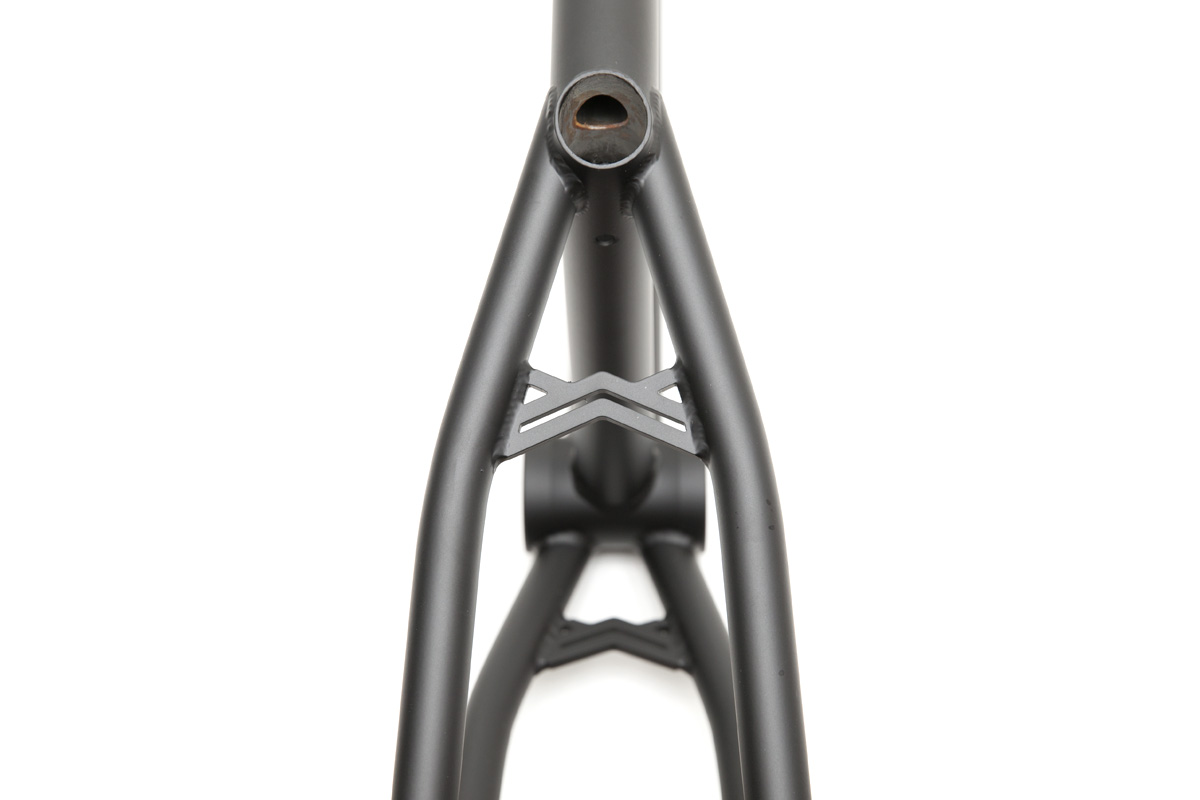

Chain Stay and Seat Stay tapered tubes. Seat/Chain Stay bridge heat treated, 5mm thick

COLORS

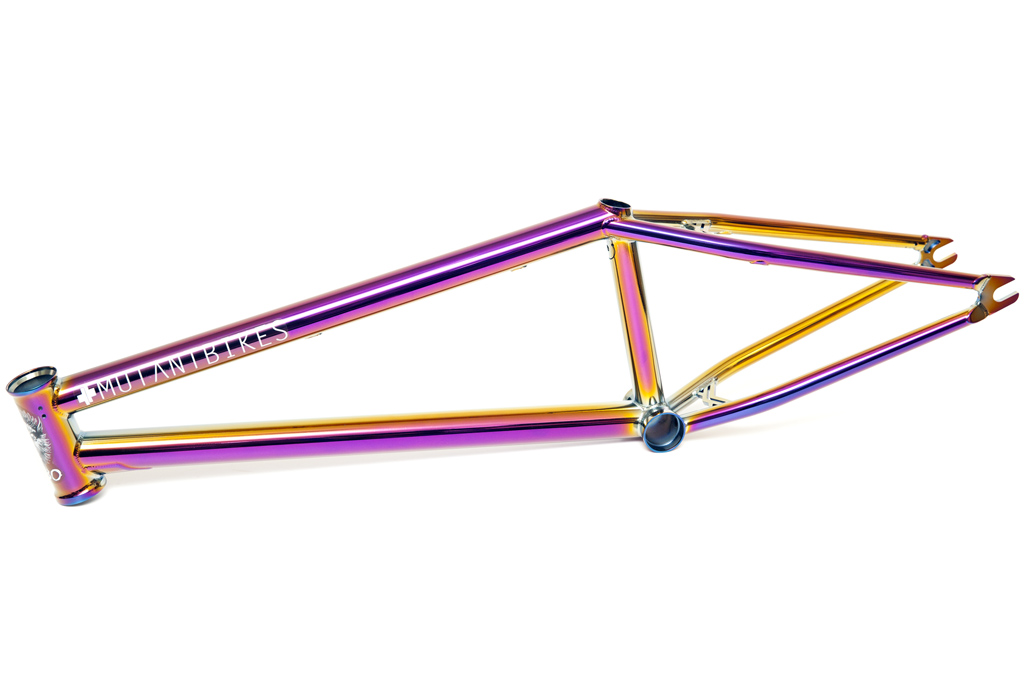

Flat black, Gloss Translucent Gold and Gloss Translucent Purple

WEIGHT
2,1Kg / 4.6 lbs.
