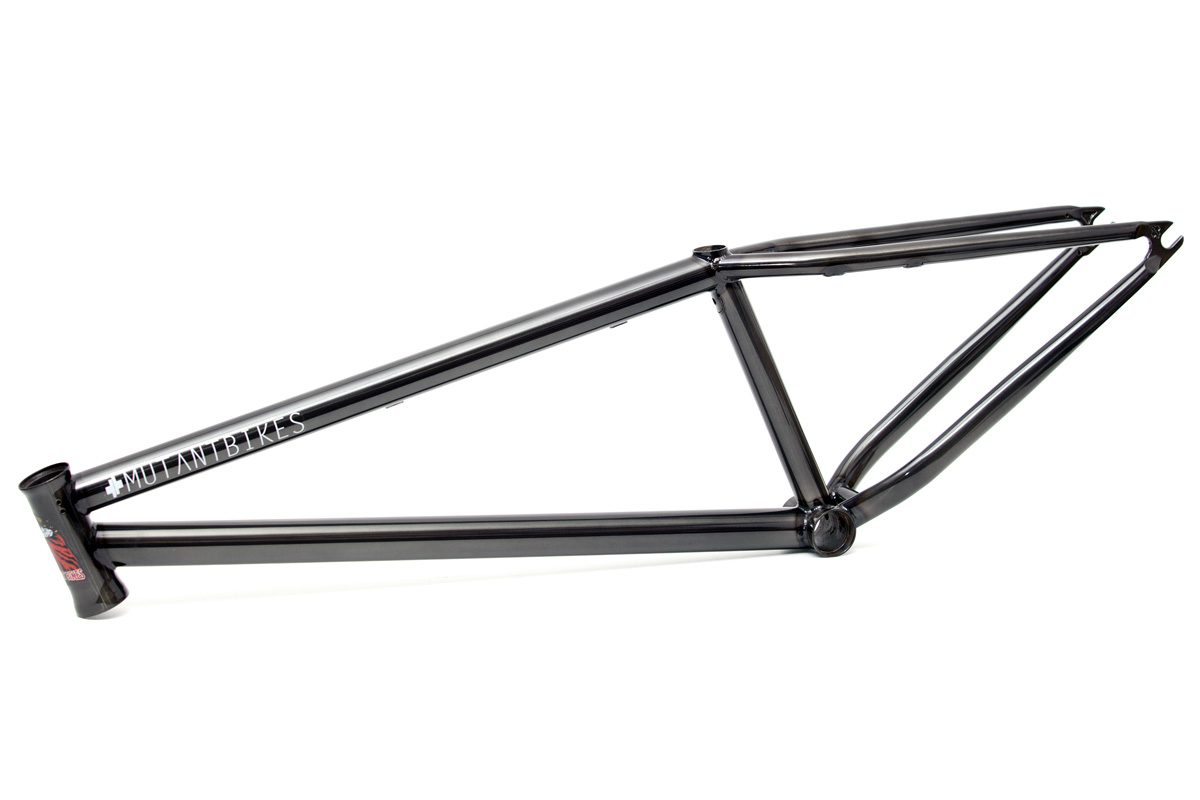

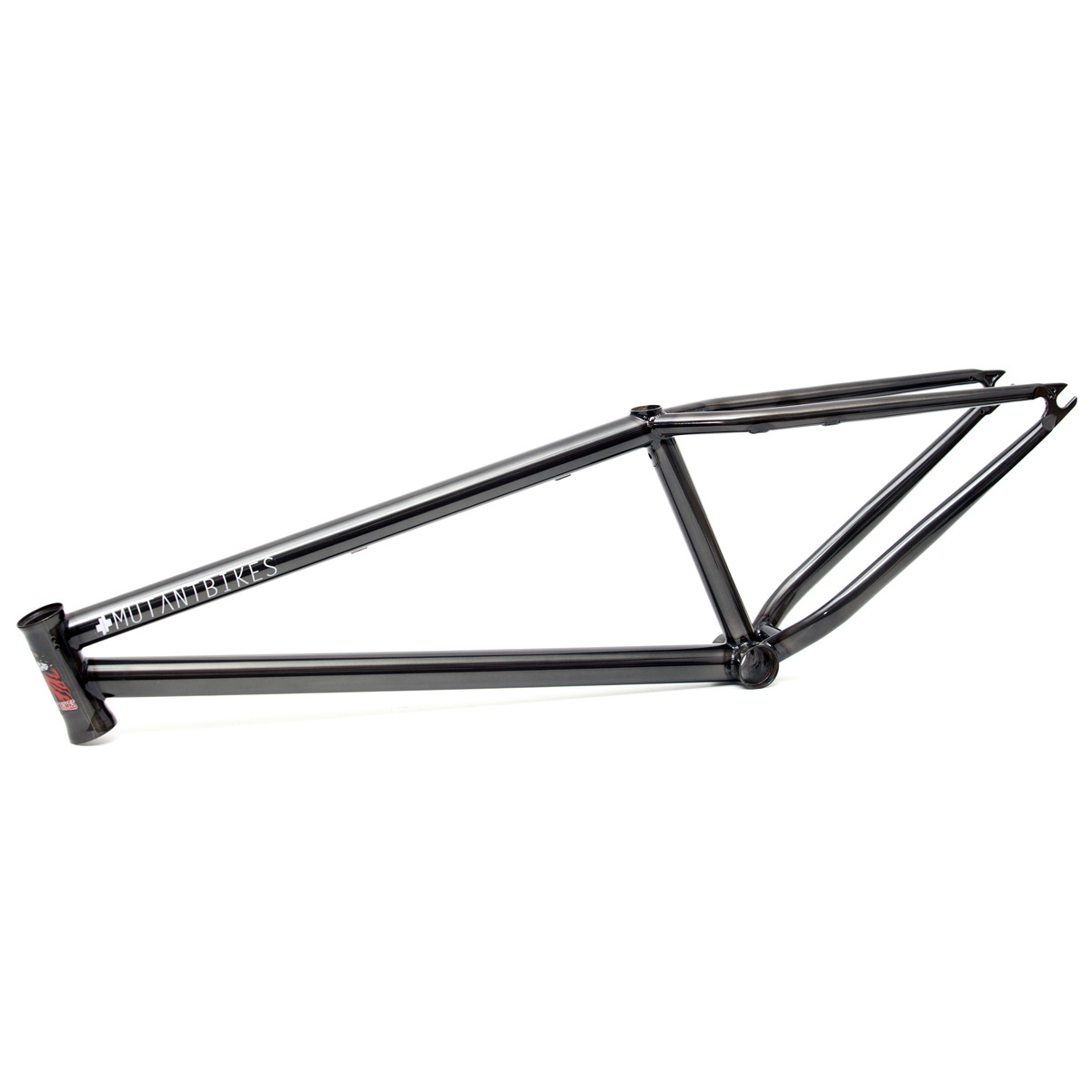

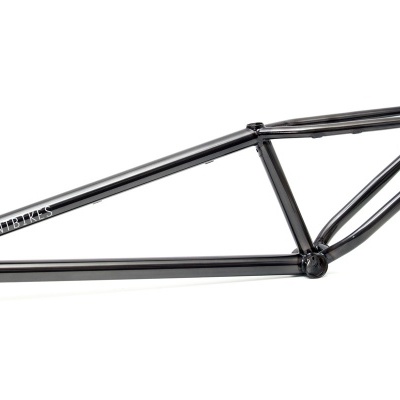

IMPERADOR V2 FRAME 26″

IMPERADOR VERSION 2 HAS A NEW MAKE UP. WE DECIDED TO CHANGE THE GEOMETRY A BIT ON THE BB, WE MAKE IT HIGHER FOR YOU CAN GRIND WITH PEGS EASY WITHOUT HAVING BB GRINDING TOO. THIS NEW VERSION MATCH PERFECT WITH OUR EVO2SIX26″, FRAME READY TO USED U-BRAKE OR V-BRAKE.
SSC PIVOTAL SEAT POST INCLUDED.

MATERIAL
Made with Sanko tubing double butted, 100% CrMo

TOP TUBE LENGTH
22.90″ / 581,72mm

REAR END SPACING
110mm BMX std.

HEAD TUBE ANGLE
71.50º
(with Evo2Six Fork)

SEAT TUBE ANGLE
73º

CHAINSTAY LENGTH
385,51mm / 15.17″

BB HEIGHT
351,2mm / 13.82”
(with Evo2Six Fork)

SEAT POST SIZE
25.4mm (BMX)

SEATCLAMP
Integrated SSC System (comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
Spanish BB external and internal machined, heat treated

DROPOUTS
lntegrated, investment casting one piece, 5mm heat treated, super small, 14mm axle slot
(to use BMX cassette hubs)

REMOVABLE
Gyro tabs, cable gides and brake mounts

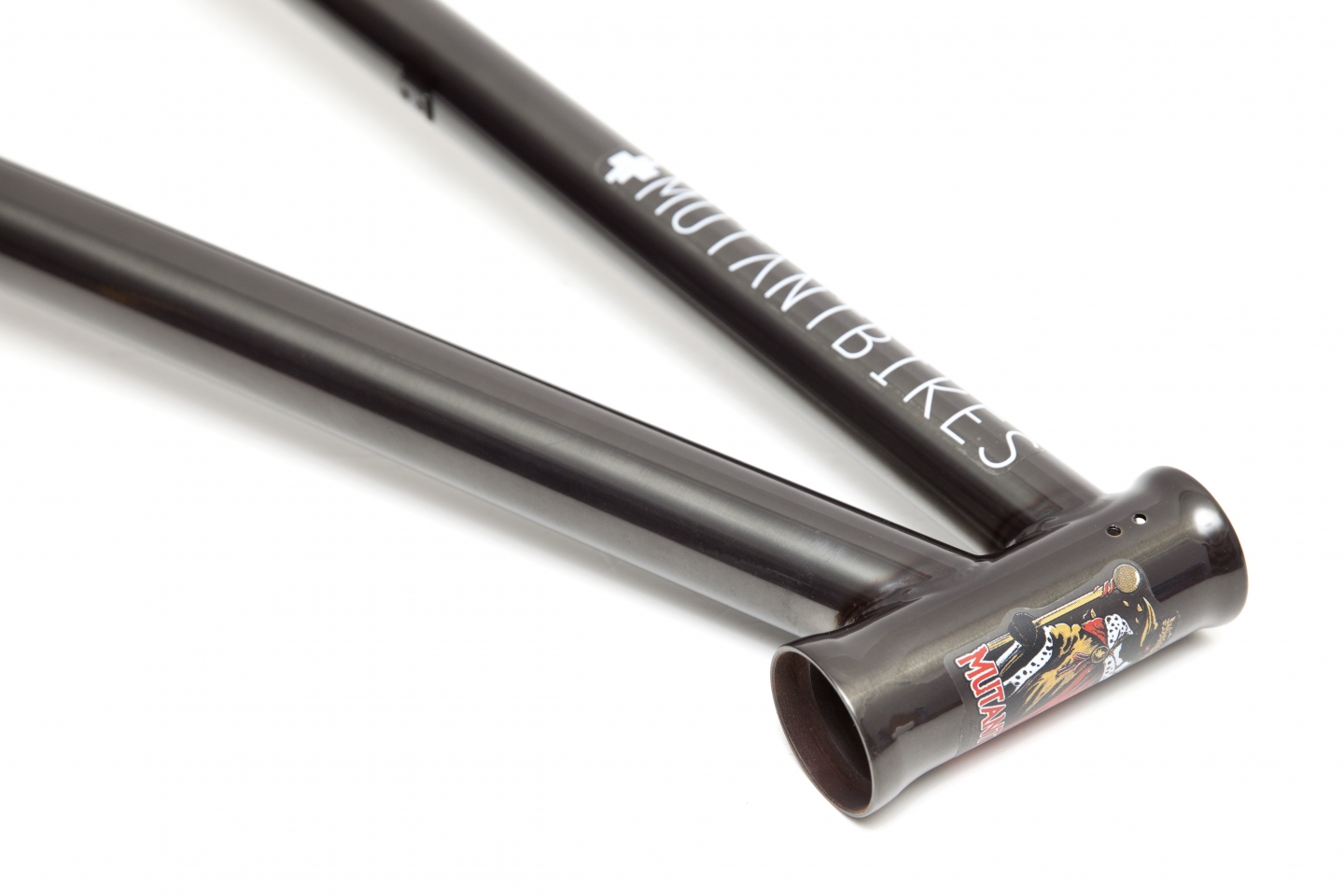

HEADSET TUBE
Integrated, heat treated, internal and external machined,
(do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES
Taper chain stay tubes with more room for wide tires,
removal V-brake system (RVS)* and removal U-brake system , just for 26″ wheels

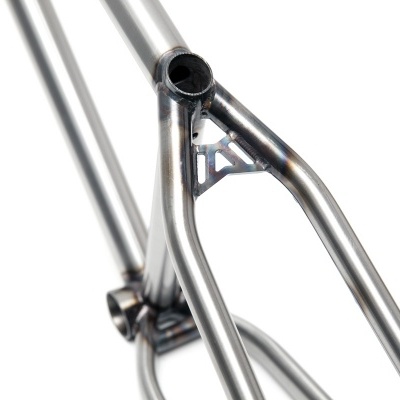

Chainstay is one piece connected to the seatstay tubes.
Top and down tubes with internal gusset at the headtube connection.

COLORS
Gloss Translucent Black and Gloss translucent clear

WEIGHT
2,5Kg / 5.51 lbs.

*RVS – Removal V-brake System, own design and developed by Mutantbikes
