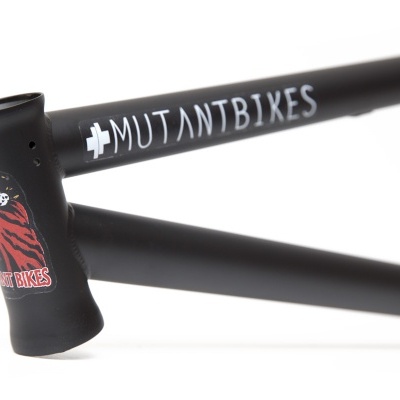

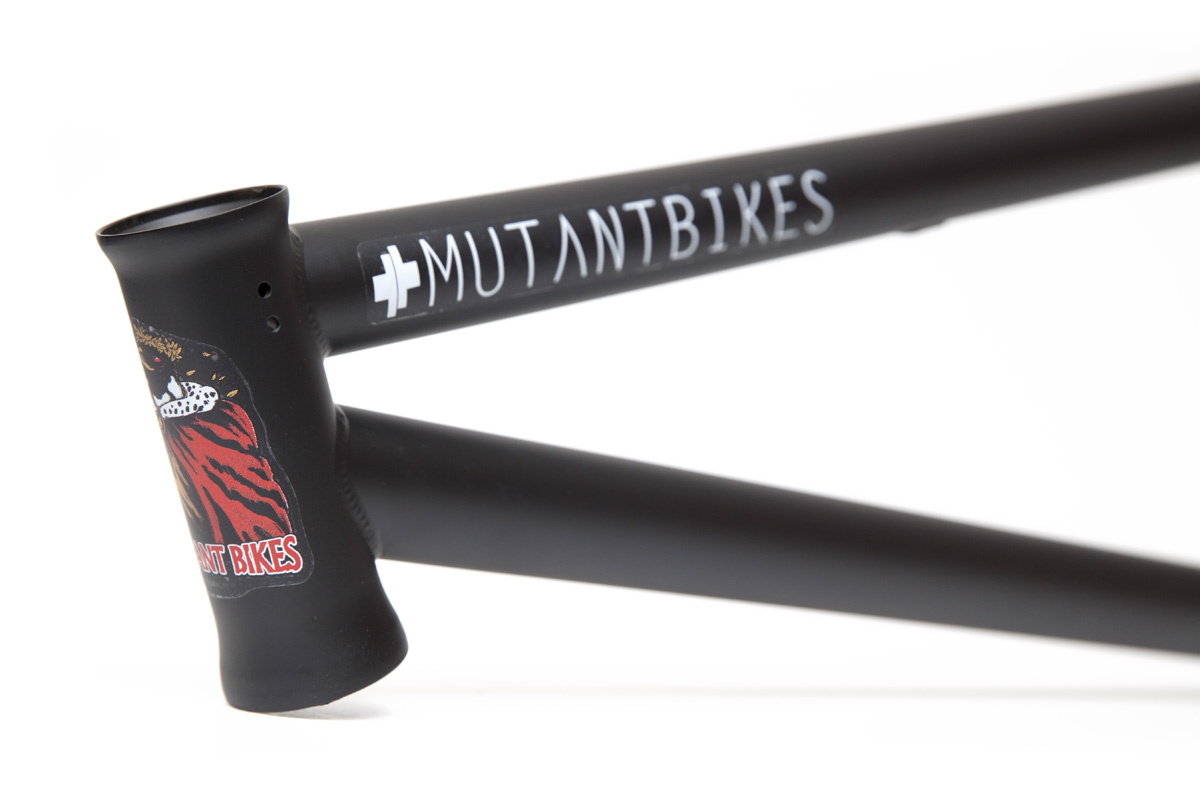

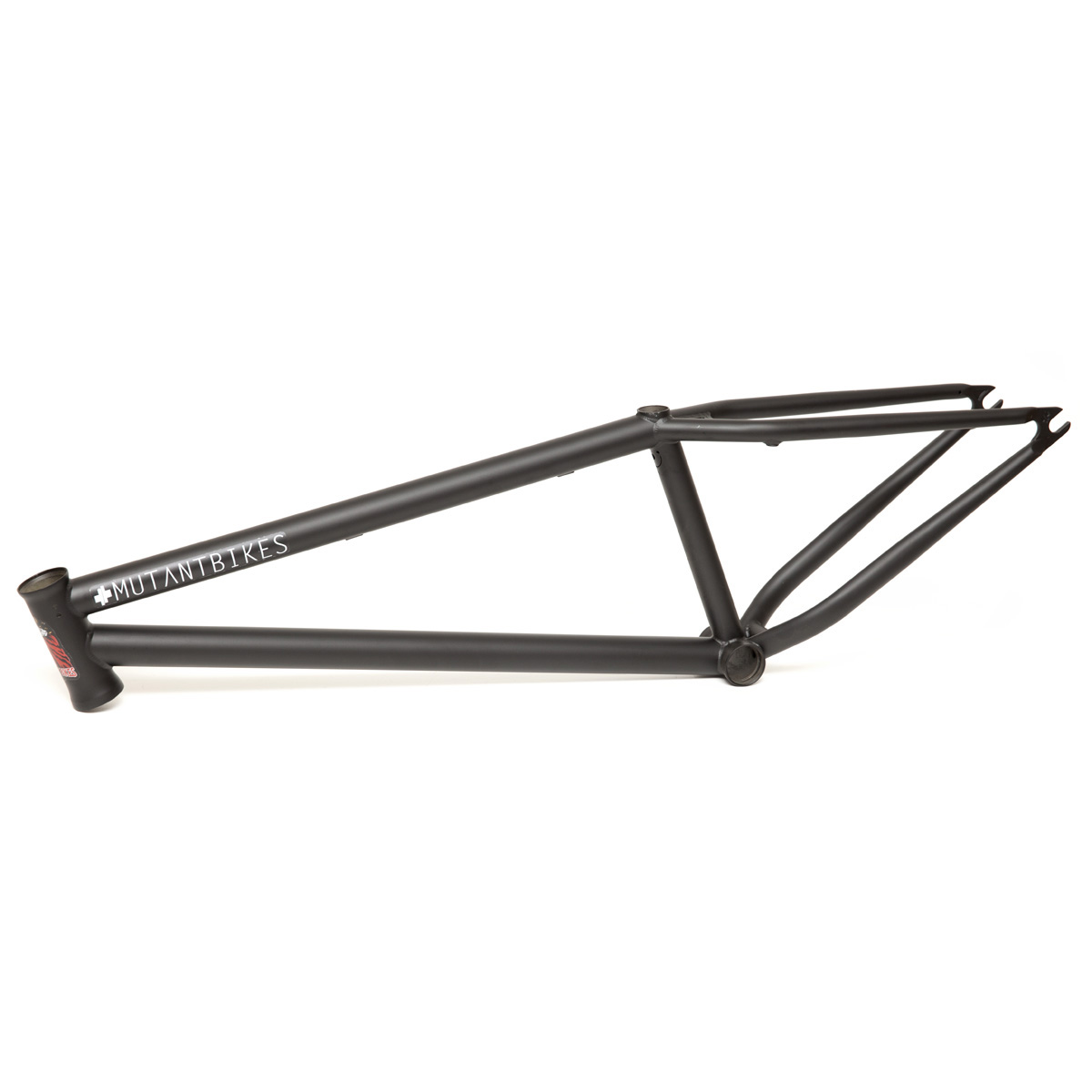

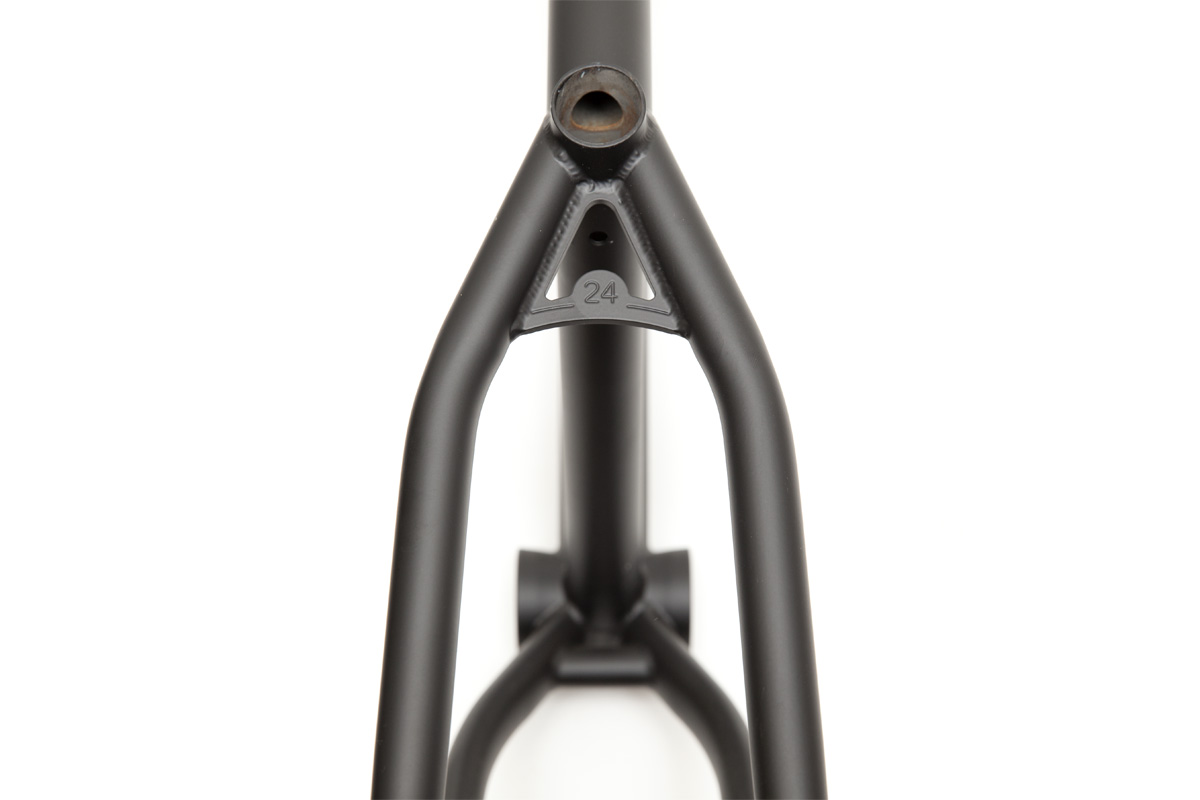

IMPERADOR 24″ FRAME

IMPERADOR 24″ FRAME WAS ALSO DESIGNED TO MATCH OUR EVO2SIX FORK AND FOR RIDERS THAT LOVE RIDING PARK WITH A 24″ WHEELS BIKE. SUPER CLEAN FRAME WITH GEOMETRY TO RIDE RIGIDE FORK AND PEGS WITHOUT GRIND WITH BOTTOM BRACKET.
SSC PIVOTAL POST INCLUDED.

MATERIAL
Made with Sanko tubing double butted, 100% CrMo

TOP TUBE LENGTH
21,97” / 558mm

REAR END SPACING
110mm BMX std.

HEAD TUBE ANGLE
71.50º
(with Evo2Six fork)

SEAT TUBE ANGLE
72º

CHAINSTAY LENGTH
367mm / 14.44″

BB HEIGHT
325,80mm / 12.82”
(with Evo2Six fork)

SEAT POST SIZE
25.4mm (BMX)

SEATCLAMP
Integrated SSC System
(comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
Spanish BB external and internal machined, heat treated

DROPOUTS
Super small, 5mm thick, heat treated, 14mm axle slot
(to use BMX cassette hubs)

REMOVABLE
Gyro tabs, cable guides, U-brake mounts and V-brake mounts RVS*

HEADSET
Integrated, heat treated, internal and external machined,
(do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES
Taper chain stay tubes with more room for wide tires, just for 26″ wheels

COLORS
Flat black and gloss blue glitters

WEIGHT
2,46Kg / 5.42 lbs.

*RVS – Removal V-brake System, own design and developed by Mutantbikes
