EVO2SIX V3 FORK

IN THE VERSION 3 WE MADE SOME CHANGES AT THE EVO 2SIX FORK TO BE STRONGER. INSTEAD OF LASER CUT, THE DROPOUTS ARE CNC MACHINED, TO AVOID CRACKS. THE DRILLING IN THE STEERER TUBE (BETWEEN THE LEGS) WAS REDUCED. FOR 2018 WE DECIDED TO CHANGE THE TOP BOLT THREAD FROM 25 TO 24M, THAT WILL GIVE A BETTER REINFORCEMENT TO THE TOP OF STEERER TUBE.

MATERIAL
Full Cr-Mo, technology 20/20 heat treatment, triple butted taped with Ø31,8 to Ø25mm offset legs

STEER TUBE
Externally and internally CNC machined, integrated cone race, 175mm length

TOP BOLT
Aluminium CNC Pre-load,
NOW with M24 tread bolt with Mutantbikes logo (30gr. / 1.05oz)

OFFSET
31mm

DROPOUTS
5mm thick, machined CNC logo, 10mm / ⅜” only

FEATURES
Length from the dropout till the cone race is 420mm

COLORS

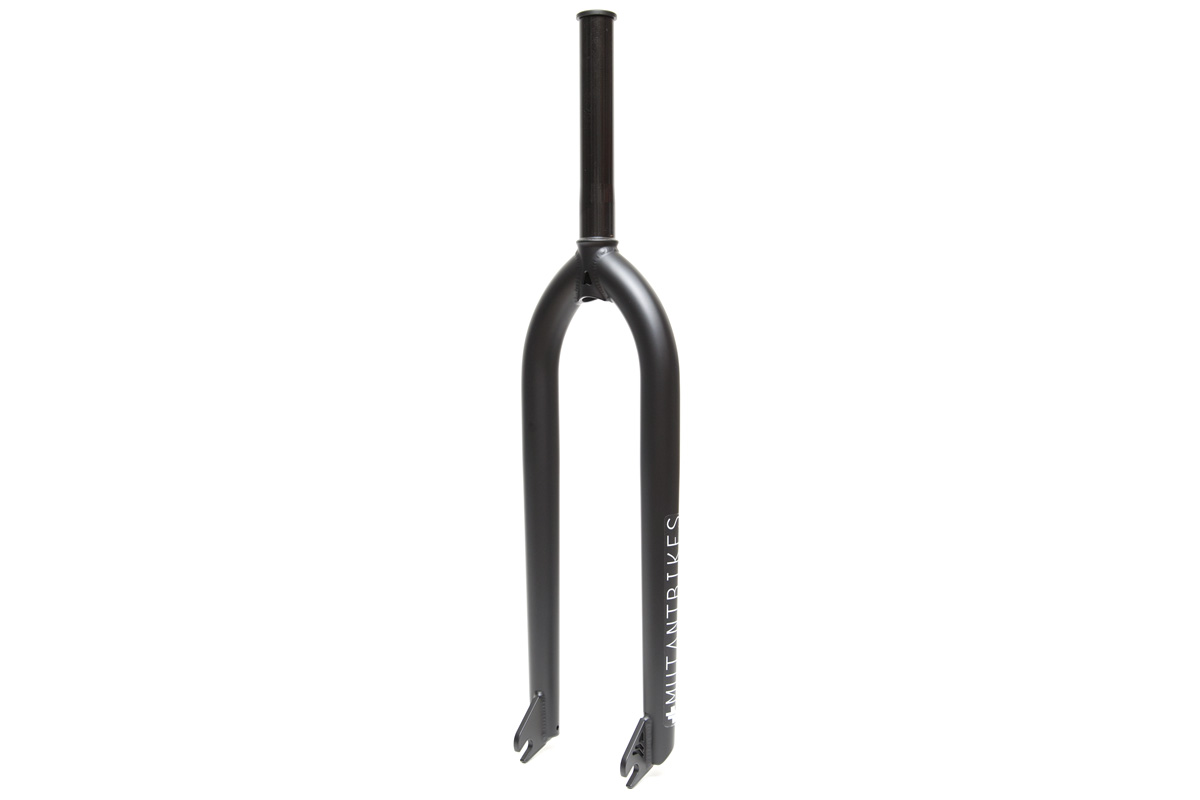

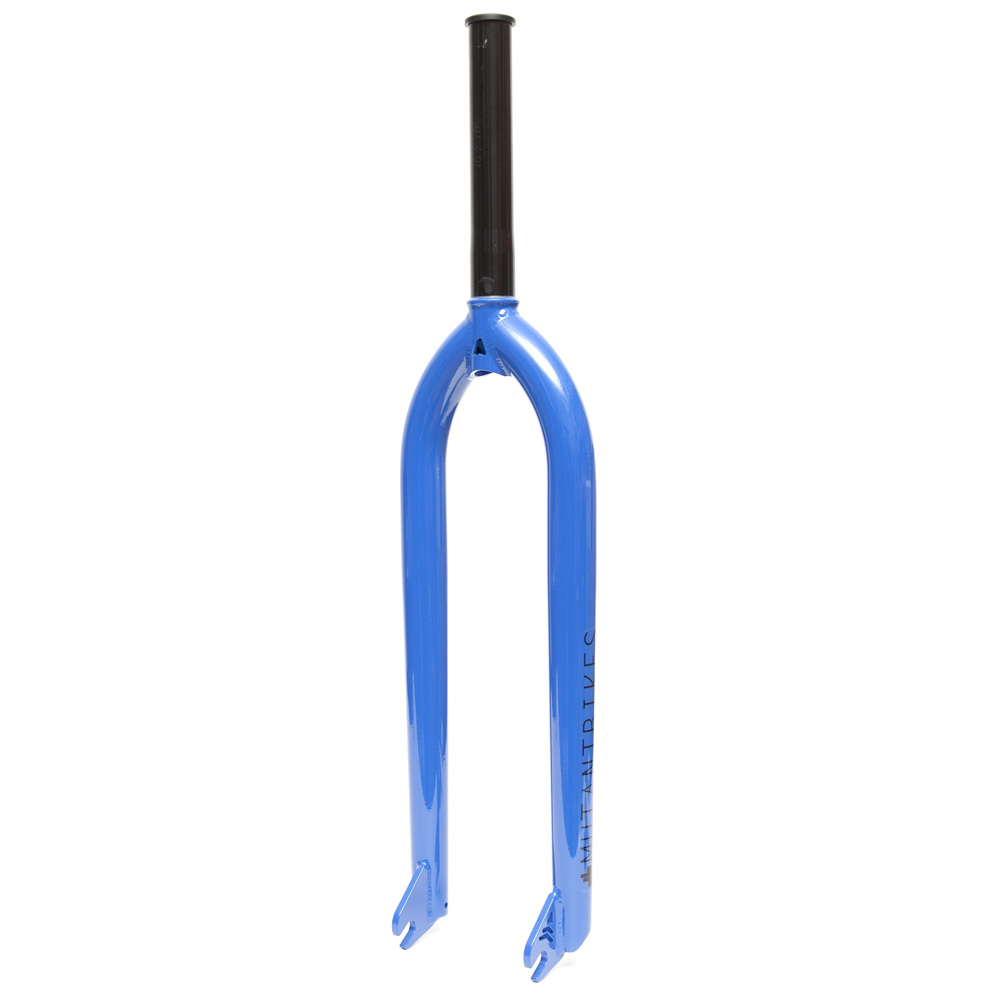

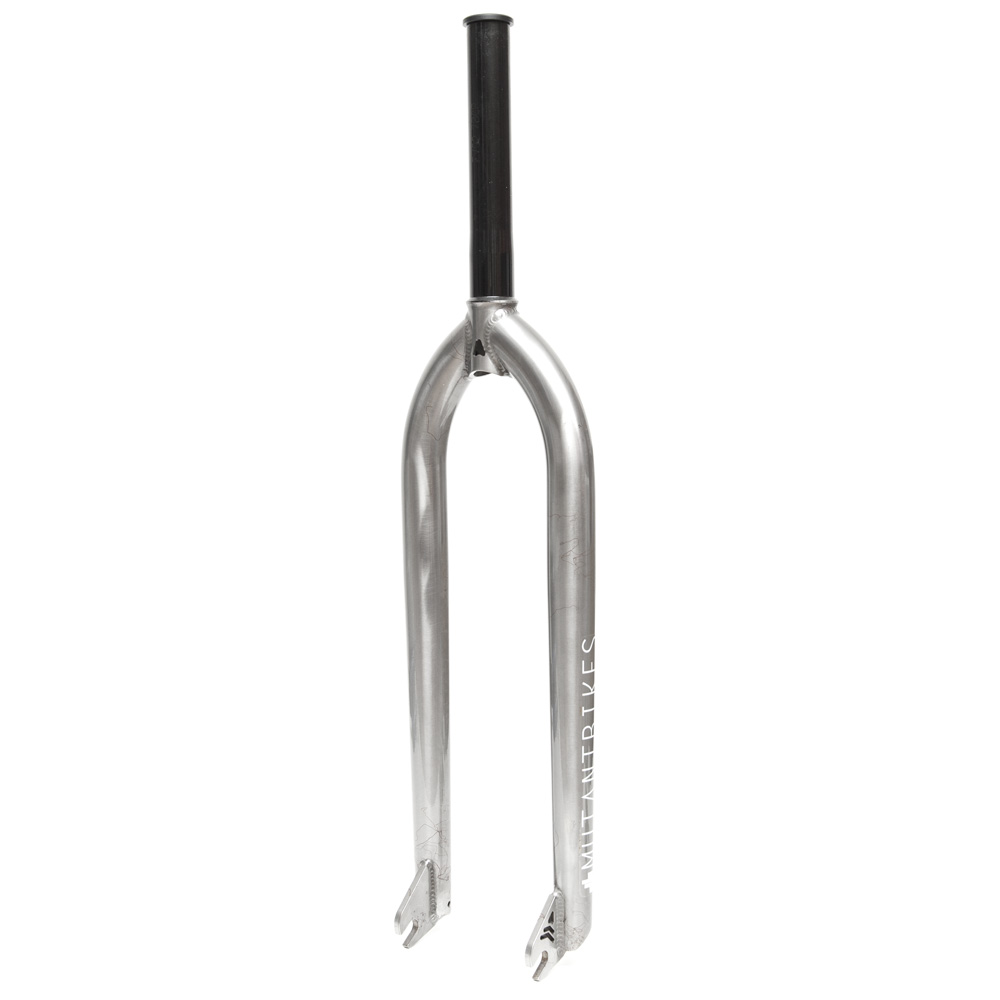

Flat black, gloss blue glitters, gloss translucent clear

WEIGHT
1220gr. / 43.03oz
(w/o top bolt)
