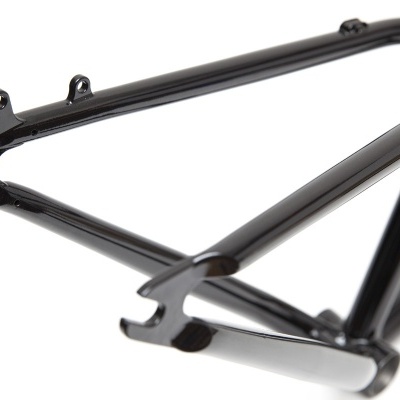

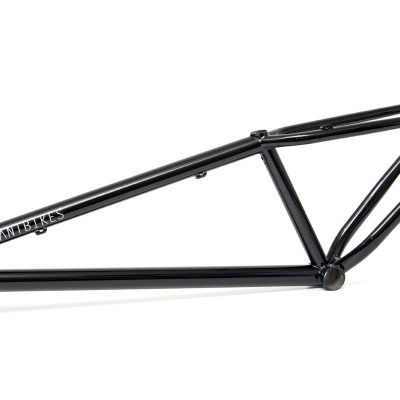

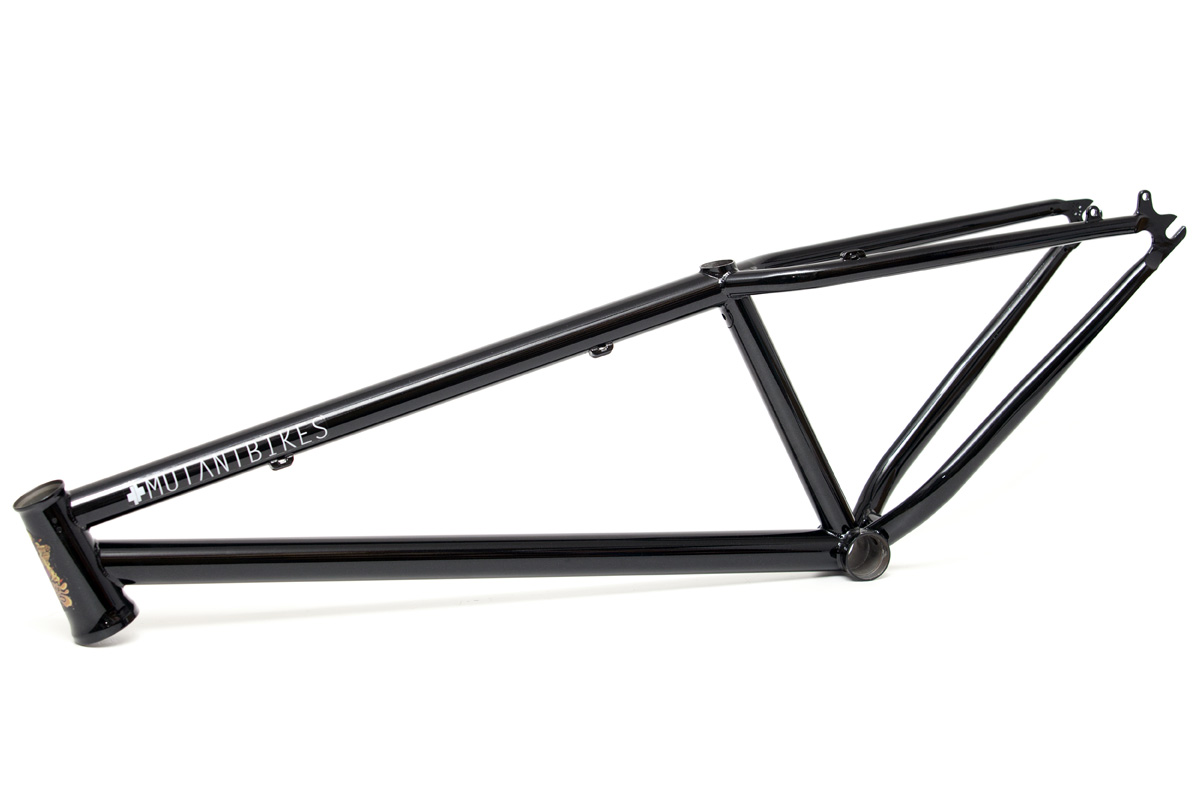

DISCO V2 FRAME 26″

DISCO 26″ VERSION II WAS CHANGED TO FOLLOW THE NEEDS OF OUR CREW. PETR ANDREEV ASK US TO CHANGE THE GEOMETRY ON THE DISCO AND WE DO SO. HE REQUEST SAME TOP TUBE SIZE, LOWER BB, SHORTER BACK END, TAPERED HEAD TUBE WITH INTEGRATED HEADSET. ALL MTB FRAMES NOW COME WITH INTERNAL GUSSET ON THE TOP AND DOWN TUBE, NO NEED EXTERNAL GUSSET AND THEY ARE STRONGER WITH THIS WAY.
SSC PIVOTAL POST INCLUDED.

MATERIAL
Made with Sanko tubing double butted, 100% CrMo

TOP TUBE LENGTH
23″

REAR END SPACING
135mm MTB std.

HEAD TUBE ANGLE & LENGTH
71.50º (with 80mm sups. fork) – Head Angle
120mm/ 4,72″ – Head Length

SEAT TUBE ANGLE
73º

CHAINSTAY LENGTH
375mm / 14.76″

BB HEIGHT
318,20mm / 12,52” (with 80mm sups. fork)

SEAT POST SIZE
25.4mm (BMX)

SEATCLAMP
Integrated SSC System (comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
Spanish BB external and internal machined, heat treated

DROPOUTS
Integrated, investment casting one piece, 5mm heat treated, super small, 10mm axle slot
(to use MTB cassette hubs)

REMOVABLE
Gyro tabs only

HEADSET TUBE
Heat treated, internal and external machined, Tapered head tube to use integrated headset 1-1/8 on the top and 1.50″ on the bottom (do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES
Taper chain stay tubes with room for 2,20″ tires size maximum, disc brake mounts only, just for 26″ wheels.
Chainstay is one piece connected into the seatstay tubes by the dropouts.
Disc brake mounts integrated in the dropout, one piece only and heat treated to be plus stronger.

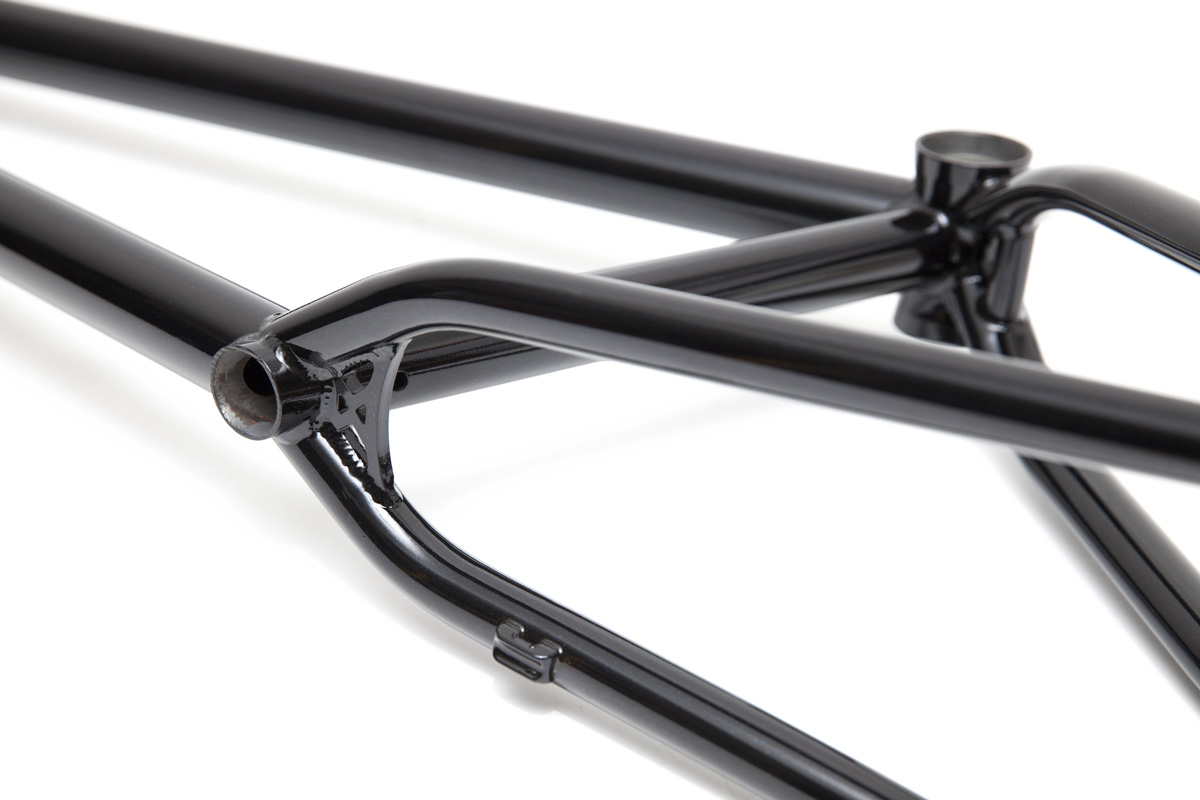

Top and down tubes with internal gusset at the headtube connection.

COLORS
Gloss black with oil slick glitters

WEIGHT
2,62Kg / 5.73 lbs.
