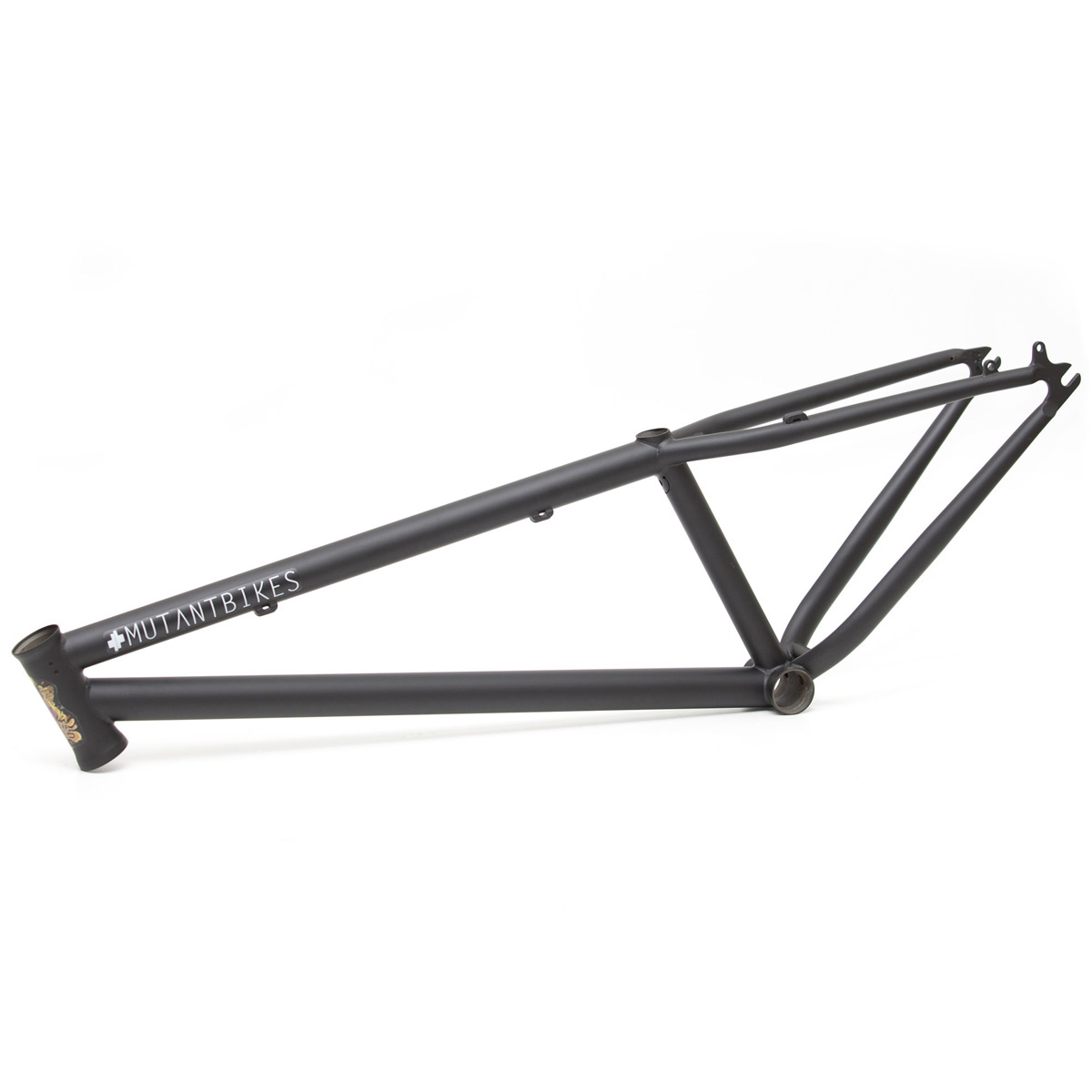

DISCO FRAME 24″

24″ FRAMES ARE BACK AGAIN, WE DECIDED TO KEEP OFFERING 24″ DIRT JUMP FRAMES. THE NEW DISCO 24″ FRAME WAS CREATED FOR RIDERS HOW LOVE MTB MX BUT DON’T WHAT IT WITH BIG WHEELS LIKE 26″. DESIGNED FOR DISC BRAKE AND V-BRAKE WITH REMOVAL BRAKE MOUNTS.
SSC PIVOTAL SEAT POST INCLUDED

MATERIAL
Made with Sanko tubing double butted, 100% CrMo

TOP TUBE LENGTH
558mm/ 21,96″

REAR END SPACING
135mm MTB std.

HEAD TUBE ANGLE
71.50º
(with 80mm travel sups. fork)

SEAT TUBE ANGLE
72º

CHAINSTAY LENGTH
365mm / 14.37″

BB HEIGHT
297,30mm / 11,70”
(with 80mm travel sups. fork)

SEAT POST SIZE
25.4mm (BMX Std.)

SEATCLAMP
Integrated SSC System
(comes with free pivotal post drilled to 6 positions to adjust)

BB TYPE
Spanish BB external and internal machined, heat treated

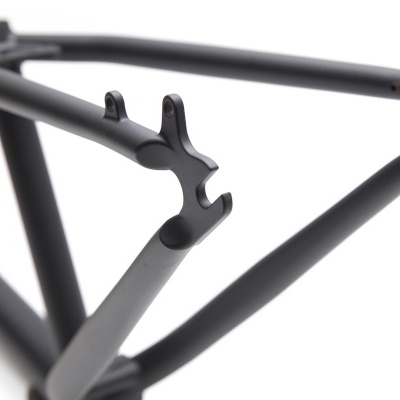

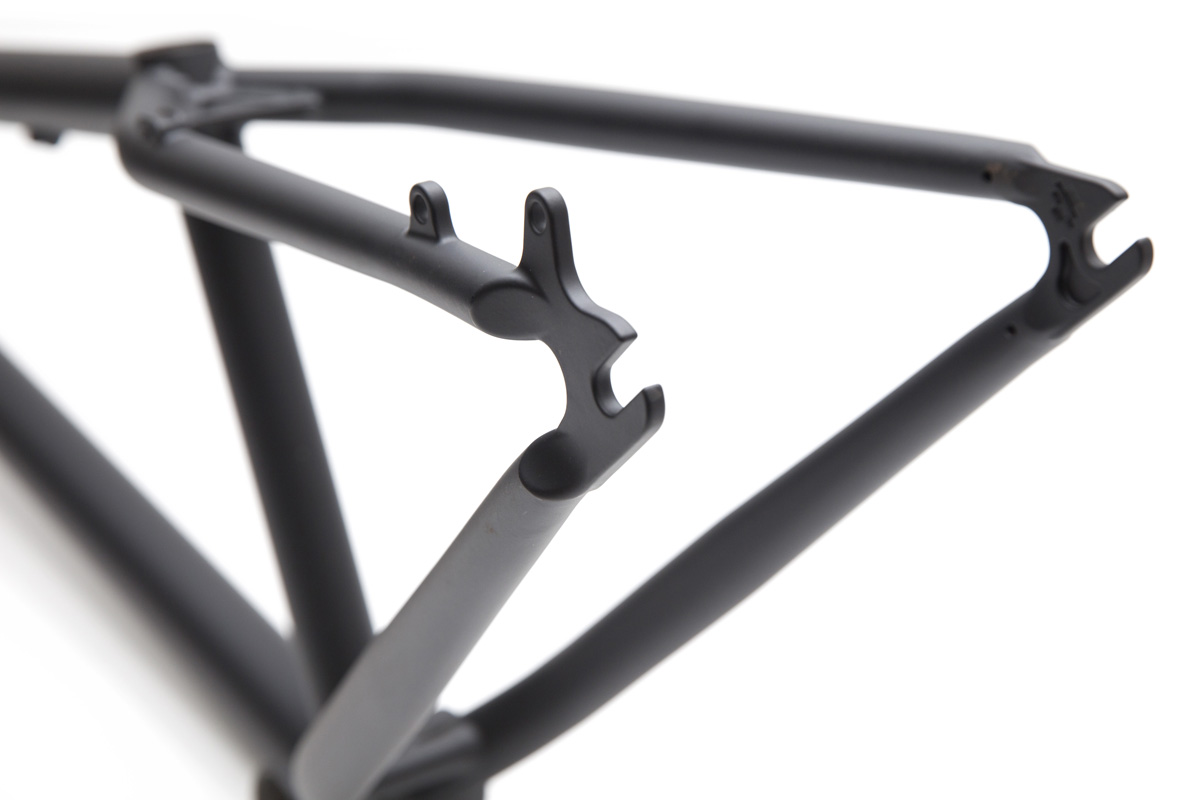

DROPOUTS
Super small, 5mm thick, heat treated, 10mm axle slot
(to use MTB cassette hubs, 135mm spacing)

REMOVABLE
Gyro tabs and V-brake mounts RVS*

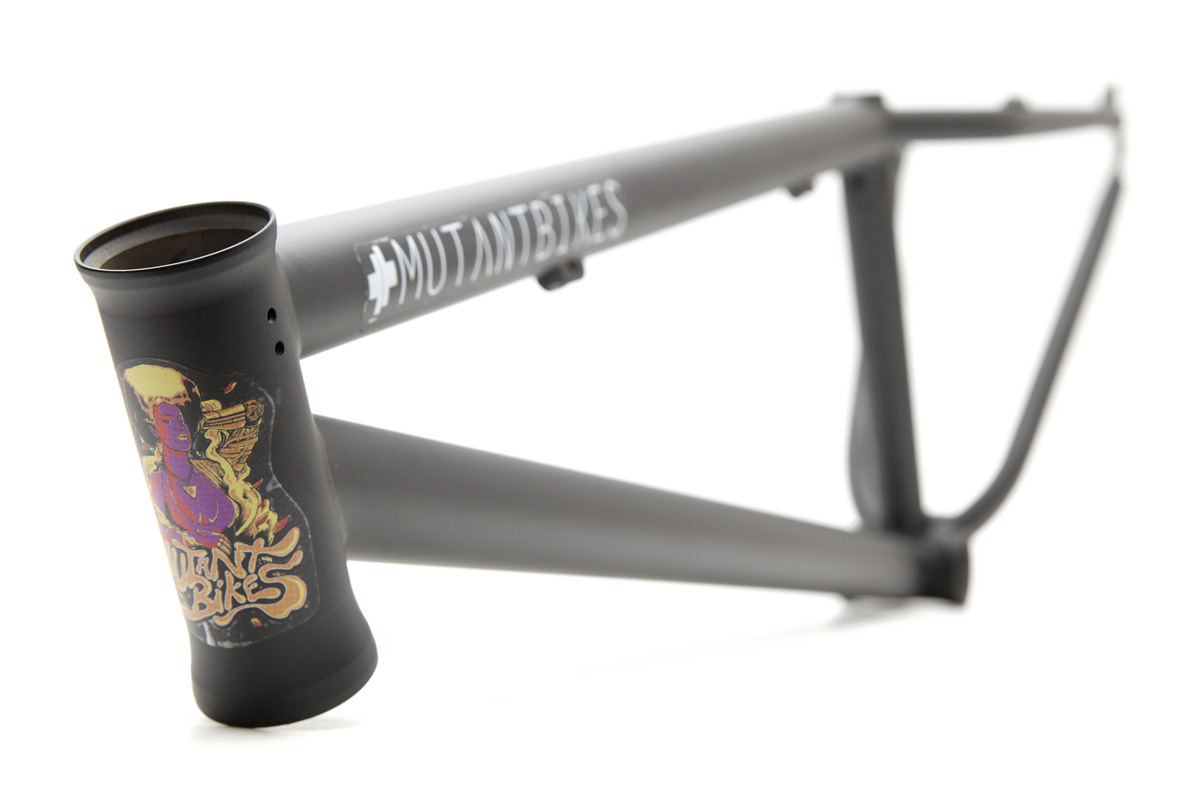

HEADSET TUBE
Integrated, heat treated, internal and external machined,
(do not use lose ball headset in our frames, they are made to use sealed bearing only)

OTHER FEATURES
Taper chain stay tubes with room for 2,20″ tires maximum, just for 24″ wheels

COLORS
Flat black

WEIGHT
2,4Kg / 5.3 lbs.
